Smart Vibration Analyzer 9084 Interprets, Analyzes and Trends Machine Condition including bearing wear. Wireless Charging.
Smart Vibration, Bearing Condition & Temperature Analyzer.
The TPI 9084 is a simple, easy to use, low cost vibration meter that records, analyses and displays vibration and bearing wear at the push of a button.
Benefits:
- Find machine faults before they stop your machine
- Increase productivity and lower maintenance costs
Features:
- Collect vibration data
- Trend data using VibTrend PC software
- Standard Cable mounted accelerometer with magnet
- USB docking station to download to a PC
- ISO built-in Alarms
- Easily identify bearing problems with BDU (Bearing Damage Unit) Reading
- Easily identify problems with built-in band filters:
1X (unbalance)
2X (misalignment)
3X (looseness) - 800 line FFT (spectrum)
- Wireless charging
- Ruggedized IP67 case
- 3-year Limited Warranty
Supplied in Soft Carry Case with space for 9084, charger, cord, Accelerometer Cable & Accelerometer, Docking Cradle & USB Cable.
$1,795.00 USA Suggested List Price
The Vib Meter 9084 is a simple to use vibration monitoring and analysis tool that allows easy display of vibration signals.
The meter automatically performs vibration analysis functions based on machine running speed to help diagnose faults such as unbalance, misalignment and looseness, as well as indicating the degree of bearing wear.
The Vib Meter 9084 unit is designed to enable a user to collect vibration measurements from assets (e.g. pumps, motors, fans and bearings). The unit displays vibration frequency plots and allows vibration severity and bearing condition to be monitored, analyzed and trended with the included VibTrend PC analysis software.
VibTrend software gives you greater ease of use and flexibility.
- Store analyze and report on all your vibration parameters in one place.
- All information is just a click away. Color coded alarms highlight problems. Trend lines show problems before they happen.

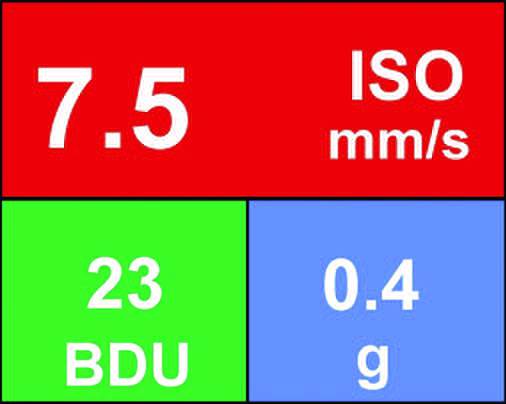

Overall machine and bearing conditions: vibration
values are displayed with color coded alarm levels for ISO values and Bearing Damage Units (BDU).
Identify complex issues: 800-line spectrum with zoom and cursor.
The Vib Meter 9084 and VibTrend is the latest easy to use high specification maintenance tool offering high level functionality and capability at extremely low cost.
VibTrend
Powerful, easy to use asset management and fault diagnosis software compatible with Windows 7 and above.
VibTrend software gives you greater ease of use and flexibility.
- Store analyze and report on all your vibration parameters in one place.
- All information is just a click away. Color coded alarms highlight problems. Trend lines show problems before they happen.
| 9084 Smart Vibration Analyzer Specifications | |
|---|---|
| Size | H 7.95” W 2.36” |
| Weight | 9.8oz (280g) |
| Environmental | Water: IP67 Waterproof Operating: 32°F to 122°F (0°C to 50°C) Storage: -4°F to 158°F (-20°C to 70°C) |
| Power supply | Lithium ion wireless charging |
| Battery life between charges | 1,500 measurements or approximately 50 hours of normal use |
| Frequency ranges | ISO: 2/10Hz - 1kHz g: 10Hz - 10kHz BDU: 1kHz - 10kHz |
| Accuracy | +/-5% |
| Frequency resolution | 800 lines |
| Displayed amplitude units | Acceleration in g Velocity in inches per second or mm per second Bearing damage in BDU |
| Displayed frequency units | Hz, CPM or RPM |
| Displayed displacement | Peak or peak to peak |
| Input range | +/- 50 g |
| Dynamic range | 96 dB |
| Auto set up of VA bands | |
| Accelerometer connection | 5 pin MIL connector cable with magnet and temperature sensor |
| Communication | Bluetooth or USB docking station and cable to PC; data integration using software C-Trend II |
| Standard accessories | A9101 Low power accelerometer with A9105 cable, temp sensor and magnet, A9081A docking station with USB cable, Standard software and carrying case and A9086 Protective boot with magnets. |
